8 x Gigabit PoE+ Ethernet ports
Up to a 200 Watt full PoE+ power budget
16 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (Model TI-S24048)
Lifetime Warranty*

SPEC
Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af PoE
IEEE 802.3at PoE+
Device Interface 8 x Gigabit PoE+ ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Performance Data RAM Buffer: 1024 KB
Switching Fabric: 16 Gbps
MAC Address Table: 8 K entries
Jumbo Frame: 9 KB
Forwarding rate: 11.9 Mpps (64-byte packet size)
Special Features Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8 KV and Surge 6 KV protection
Power Input: 48 - 56 V DC
Compatible power supply: TI-S24048 (sold separately)
Consumption: Max. 5.76 Watts (without PD)
PoE PoE budget: 200 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm
Alarm Relay Contact Relay outputs with current carrying capacity of 1 A, 24 V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
Power Consumption Max. 5.76 Watts (without PoE)
MTBF 510,304 hours
Housing IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection
6 KV surge protection
Operating Temperature - 40 to 75 °C (-40 to 167 °F)
Operating Humidity Max. 95 % non-condensing
Dimensions 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.)
Weight 554 g (1.22 lb)
Certifications CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty Lifetime Warranty*

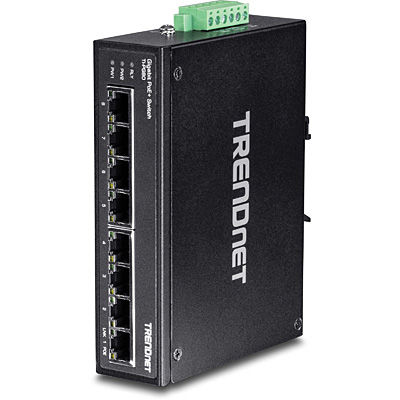

TRENDNET INDUSTRIAL TI-PG80

Rp7.339.000,00

Quantity

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af PoE IEEE 802.3at PoE+
Device Interface	8 x Gigabit PoE+ ports 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 1024 KB Switching Fabric: 16 Gbps MAC Address Table: 8 K entries Jumbo Frame: 9 KB Forwarding rate: 11.9 Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 8 KV and Surge 6 KV protection
Power	Input: 48 - 56 V DC Compatible power supply: TI-S24048 (sold separately) Consumption: Max. 5.76 Watts (without PD)
PoE	PoE budget: 200 Watts Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34 mm^2 to 2.5 mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm Wire strip length: 7-8 mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1 A, 24 V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
Power Consumption	Max. 5.76 Watts (without PoE)
MTBF	510,304 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point 8 KV ESD protection 6 KV surge protection
Operating Temperature	- 40 to 75 °C (-40 to 167 °F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.)
Weight	554 g (1.22 lb)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*
