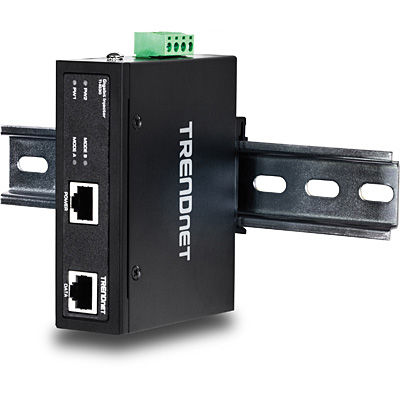

Hardened IP30 rated Gigabit PoE+ Injector
High power PoE+
Network a PoE device located up to 100 meters (328 ft.) away
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Dual redundant power inputs with overload current protection
Includes DIN-rail and wall mounts
Power supply sold separately (model TI-S12048)

SPEC
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface
1 x Gigabit port
1 x PoE+ Gigabit port
4-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Special Features
Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
ESD 8 KV and Surge 6 KV protection
Power
Input: 48 – 56 V DC
Compatible power supply: TI-S12048 (sold separately)
Consumption: Max. 36 Watts
PoE
PoE budget: 30 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block
Redundant power inputs, 4 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7 – 8 mm
MTBF
510,304 hours
Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection
6 KV surge protection
Operating Temperature
- 40 to 75 °C (-40 to 167 °F)
Operating Humidity
Max. 95 % non-condensing
Dimensions
104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)
Weight
134 g (4.7 oz.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
3 year
