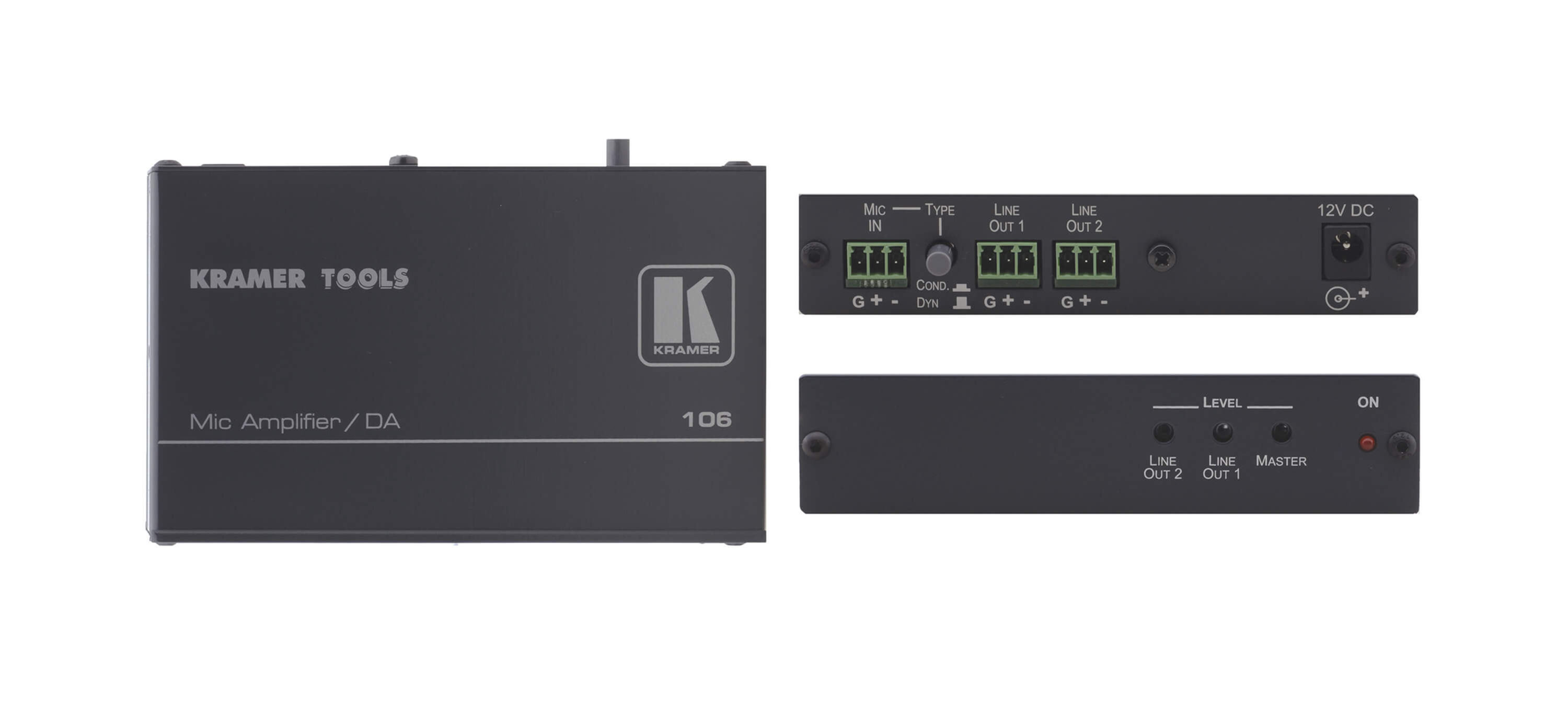

1:2 Microphone to Line Distribution Amplifier
Mic Input — Condenser or Dynamic
Phantom Power — 48V DC
S/N Ratio — 81dB
Level Controls
Connectors — Terminal Blocks
 Microphone - 3.5/6.5mm


INPUT
1 balanced mono microphone on a 3–pin terminal block connector
OUTPUTS
2 balanced mono line outputs on 3–pin terminal block connectors
MAX. OUTPUT LEVEL
27Vpp (22dBu)
BANDWIDTH
>40kHz
S/N RATIO
81dB
CONTROLS
Mic. type selector pushbutton, — 14dB to +68dB LINE OUT trimmers (master trimmer at max.), +37dB to +68dB master trimmer (line out trimmer at max.)
COUPLING
Input, AC
output, DC
INPUT IMPEDANCE
~10kΩ
OUTPUT IMPEDANCE
50Ω
GAIN
Up to 68dB
AUDIO THD + NOISE
0.18%
AUDIO 2ND HARMONIC
0.16%
POWER CONSUMPTION
12V DC, 220mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSIONS
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSIONS
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.1lbs) approx.
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
