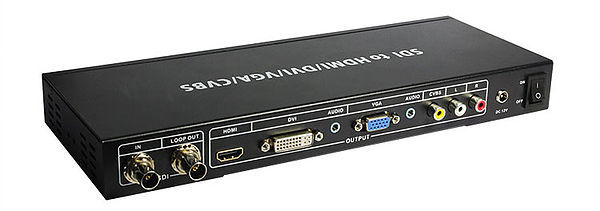

The SDI to All Scaler Converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/DVI/VGA/Composite port displays. This means that it is now easier for professionals to distribute and extend their SDI signal to display on consumer displays. SDI loop-through port can let user show content on both SDI and HDMI/DVI/VGA/Composite port displays simultaneously.




  • Auto detect SD-SDI, HD-SDI and 3G-SDI input signals

  • Supports HDMI/DVI/VGA/Composite and SDI (loop-through) output simultaneously

  • Supports SDI Standards of SMPTE 425M-AB, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

  • SDI interface operates at bit rates of 2.97Gb/s, 2.97/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270 Mb/s

  • SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

  • Scales any SDI signal to HDMI/DVI/VGA: 1280x720,1920x1080,1024x768,1920x1200@60Hz

  • Scales any SDI signal to Composite: NTSC, PAL

  • Equalized and re-clocked loop output

  •  Supports Black Screen signal output any time
